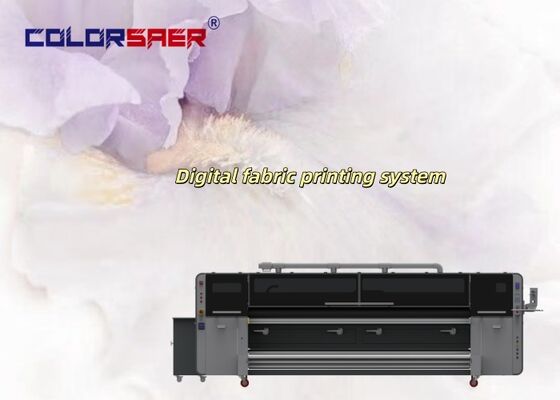

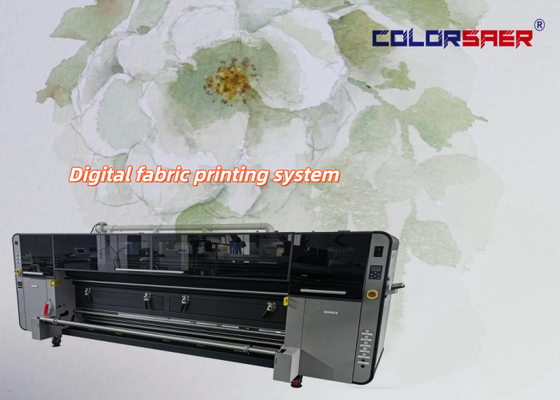

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric
Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric

ภาพใหญ่ :  Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric

รายละเอียดสินค้า:
สถานที่กำเนิด: เซี่ยงไฮ้ประเทศจีน
ชื่อแบรนด์: SAER
ได้รับการรับรอง: CE Certification
หมายเลขรุ่น: ซีเอสอาร์3200
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: โปร่ง
รายละเอียดการบรรจุ: กล่องไม้ปลอดการรมควัน
เวลาการส่งมอบ: 15 วันทำการ
เงื่อนไขการชำระเงิน: ที/ที, เวสเทิร์นยูเนี่ยน
สามารถในการผลิต: 50 ชุดต่อเดือน

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric

ลักษณะ
ประเภทผ้าที่เหมาะสม: โพลีเอสเตอร์และผ้าฝ้าย การประมวลผลสื่อ: ม้วนเป็นม้วน + การให้อาหารอัตโนมัติ + ม้วนอัตโนมัติ
ประเภทหมึก: หมึกระเหย, หมึกเม็ดสี แหล่งจ่ายไฟ: AC380, 50/60เฮิร์ต
สีและหน้า: หลากสี การใช้งาน: สาขาโฆษณาในร่มและกลางแจ้ง
ระบบปฏิบัติการที่เข้ากันได้: Windows 7 & Windows 10 โซฟา: นิล
กำลังการทำงานของเครื่องจักร: 7kW เกรดอัตโนมัติ: อัตโนมัติ

Product name: Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric

Machine Specifications:

Product Parameter
Model type CSR3200
Print head 4 pieces i3200A1
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*4head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC380V ,50/60HZ
Power Heater 3KW
Printer 4KW
Temperature 30-32℃
Humidity 40-60%(Non-condensing)

Printer working speed:





Printing resolution and speed

Resolution(dpi) speed
720*1200dpi(4 pass) 78m2/h
720*2400dpi(8 pass) 52m2/h
360*1200dpi(2 pass) 136m2/h

Main Features :

X axis and Yaxis:
X axis and Y axis are using AC servo motors.

Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .

Print head: Four Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

Advantages:

  1. Unique filtering lampblack system, make the picture very clean.
  2. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
  3. Taking up and feeding fabric are smoothly
  4. Taking up and feeding roller are inflatable roller.

FAQ:

1) How can I place order?
A: Contact us about your order details,we will prepare the PI .

2) How can I pay you?
A: Uaually we accept T/T, Western Union

3) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

4) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.

5) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.

Logistics Service:
Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric 0

Professinal Service:

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric 1

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric 2


Application industry:

  1. Clothing industry: sample print or character pattern of color printing.
  2. Personality print: such as shops, cell phone decoration shop, personality gift shop.
  3. Studio: digital image production.
  4. Advertising industry: indoor and outdoor advertising.
  5. Products proofing: all kinds of traditional printing sample production.

Cost Effective SAER COLOR Large Size Digital Textile Printing Machine For Cotton & Polyester Fabric 3
